Zebra ZD421d Desktop Direct Thermal Printer, RTC, USB, USB Host, BT (BLE), USB

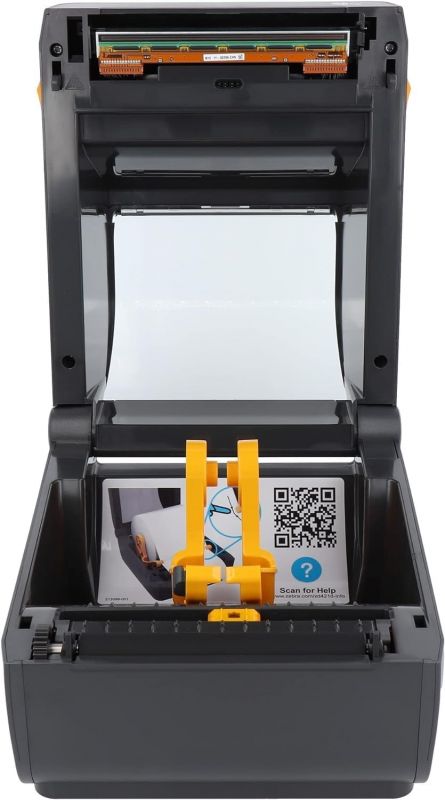

Zebra printer ZD421d - tear-off edge
Zebra ZD421d, 203 dpi desktop printer, model with tear-off edge (ZD4A042-D0EM00EZ), successor to GK42-202520-000
- Printing method: direct thermal
- Max. print width: 104 mm
- Max. print speed: 152 mm/s
- Without network connection
- Interfaces: Bluetooth (BLE), USB, USB-Host
Click here for suitable labels for the Zebra ZD421d printer
< View everything from the category Desktop Label Printers
Delivery within 5-7 working days!
- Brand: Zebra
- Weight: 1.350 Kgs
Product description
The Zebra ZD421 printer is the latest version of the Zebra desktop series and is the successor of the popular ZD420 and GK420 series. With the ZD421 printers, it is possible to add options to the printer afterwards, such as an ethernet or serial interface, or a label dispenser or cutter mechanism. This makes the ZD421 printer fully suitable for every application.

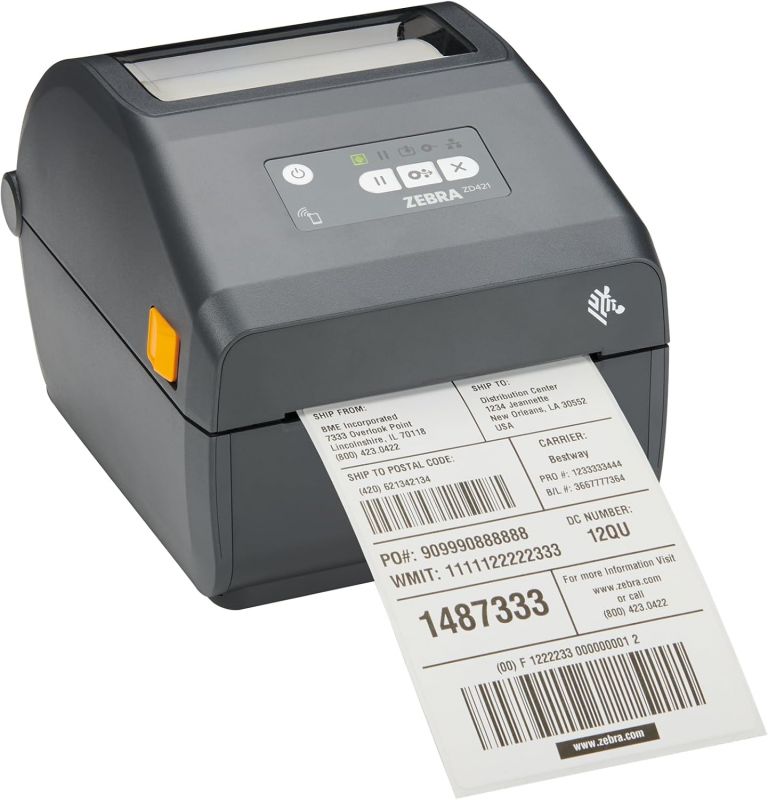

The ZD421d printers can only print thermal labels and are therefore priced cheaper. Thermal labels are ideal for address and shipping labels.
Configuration options:
|
Interfaces: |

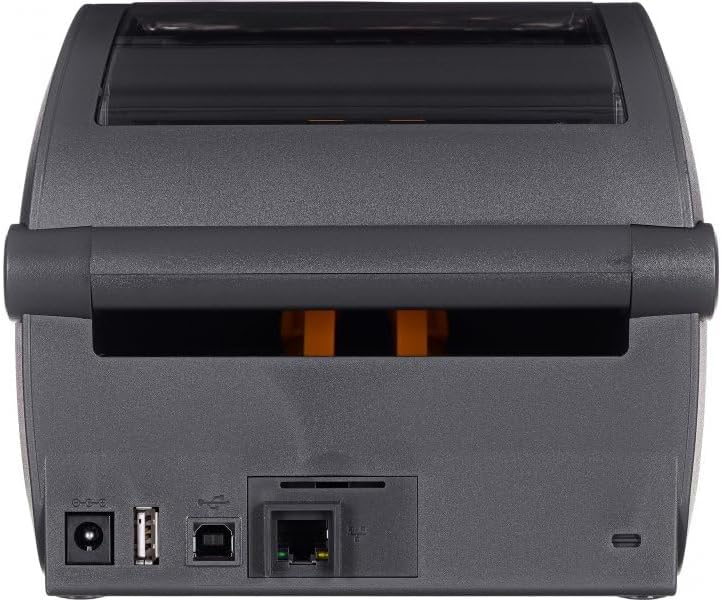

The Zebra ZD421 printer comes standard with a USB 2.0 interface, a USB Host interface and with Bluetooth LE. Optionally, the ZD421 is also available with an 802.11ac Wi-Fi interface and with MFi certified Bluetooth v4.1 (compatible with Apple iOS devices). |
|
Print resolution: |
The ZD421 printer is available with a 203dpi or 300dpi printhead. The 203dpi version is suitable for printing text and barcodes, the 300dpi version for text, barcodes and graphic information such as logos and symbols. |
Specifications
| Color | Dark grey | |
| Communication | Apple MFI Certified Bluetooth LE NFC |
|
|
|
Interface(s) | Modular Connectivity Slot USB USB-host |
|
|
Application | Office Store Warehouse |
| In the box | Connection cable Power supply Power cord Quick start guide Printer |
|
|
|
Print method | Thermal paper Thermal labels |
| Maximum print width | 104 mm | |
| Maximum print speed | 152 mm/sec | |
| Print resolution | 203dpi | |
| Printer control Language | EPL2 PDF Direct XML ZBI ZPL II |
|
| Dimensions (WxHxD) | 17,8 x 15,1 x 22,1 cm | |
| Weight | 1350 gram | |
| Replacement of | ZD42042-D0E000EZ | |
| Brand | Zebra | |
| Category | Desktop Printers | |
| Warranty | 2 years | |
| Product code | ZD4A042-D0EM00EZ | |
| Vendor Code | ZD4A042-D0EM00EZ |
| manufacturer | Zebra |
|---|---|
| model | ZD421d |
| productdescription | desktop printer |
| type | model with tear-off edge |
| application | shipping labels |
| used device | nein |
| interfaces | Bluetooth (BLE), USB, USB-Host |
| resolution (dpi) | 203 |
| outer diameter label roll (mm) | 127 |
| roll width max. (mm) | 118 |
| roll width min. (mm) | 25,4 |
| printing method | direct thermal |
| core diameter label roll | 1 inch (25.4 mm) |
| label winding | outside wound |
| printwidth max. (mm) | 104 |
| print speed max. (mm/s) | 152 |
| scope of delivery | Printer(s), power supply, EU power cord, US power cord, instruction manual, free telephone support, software |
| operating system | We recommend this printer for use with windows, we do neither recommend nor support usage with MacOS. |
| safety instructions | Always have service work carried out in a qualified workshop that has the necessary expertise and tools to carry out the required work, Das Gerät ist für Stromnetze mit Wechselspannung von 100 V bis 240 V ausgelegt. Es ist nur an Steckdosen mit Schutzleiterkontakt anzuschließen, Do not operate the appliance in a potentially explosive atmosphere., Do not operate the appliance in the vicinity of high-voltage power lines., Do not remove any warning stickers, otherwise dangers cannot be recognized, If the appliance is operated with the lid open, ensure that people's clothing, hair, jewelry or similar items do not come into contact with the exposed rotating parts, Improper tampering with electronic assemblies and their software can cause faults, Only carry out the actions described in these operating instructions. Further work may only be carried out by trained personnel or service technicians, Only connect the appliance to devices that carry a safety extra-low voltage, Other improper work or modifications to the appliance can also jeopardize operational safety, Risk of crushing when closing the lid. Only hold the lid from the outside when closing and do not reach into the swivel area of the lid, Switch off all affected devices (computer, printer, accessories) before making or disconnecting connections, The appliance or parts of it can become hot during printing. Do not touch during operation and allow to cool down before changing material or dismantling, The device may only be operated in a dry environment and must not be exposed to moisture (splash water, fog, etc.)., The maximum emission sound pressure level LpA is below 70 dB(A) |
| Brand: |
ZEBRA |
|---|---|
| Print Method: |
Direct thermal |
| Resolution: |
203 dpi (8 dots/mm) |
| File | Info |
|---|---|
Zebra_ZD421_DataSheet_EN-EasyLabelBG
|
[PDF, 424.3 KB] |
